Manual transfer pumps represent a versatile solution for fluid handling, offering a simple, cost-effective method for moving liquids without relying on electricity.

These pumps utilize human power, making them ideal for remote locations or situations where electrical sources are unavailable, ensuring operational flexibility.

The basic design is a hydraulic mechanical device, transferring fluids efficiently, and a wide variety of designs are readily available for diverse applications.

Modern pumps offer a broad spectrum of choices, catering to specific needs, and proper care enhances operation, ensuring longevity and reliable performance.

They are frequently employed in scenarios demanding portability and independence from power grids, providing a practical and dependable fluid transfer solution;

Understanding their operation and applications is crucial for selecting the appropriate pump for a given task, maximizing efficiency and minimizing potential issues.

What is a Manual Transfer Pump?

Manual transfer pumps are self-contained devices designed to move liquids through mechanical action powered by human effort. Unlike electric pumps, they require no external power source, making them incredibly versatile for various applications.

Essentially, these pumps utilize a hand-operated mechanism – be it a lever, handle, or rotary action – to create either suction or positive displacement, drawing fluid from a source and delivering it to a desired location.

The core principle revolves around converting manual energy into fluid movement, offering a reliable solution where electricity is unavailable or impractical. They are hydraulic mechanical devices, and their simplicity contributes to their durability and ease of maintenance.

These pumps are often chosen for their portability and independence, allowing for fluid transfer in remote areas or emergency situations. They represent a cost-effective alternative to powered pumps, particularly for intermittent or low-volume transfer needs.

Proper care and judgement are essential for optimal operation, ensuring efficient and safe fluid handling.

Common Applications of Manual Transfer Pumps

Manual transfer pumps find widespread use across diverse industries and scenarios due to their portability and independence from electrical power. A frequent application is in automotive maintenance, for transferring fluids like oil, coolant, and windshield washer fluid.

Agricultural settings benefit from their use in dispensing fertilizers, pesticides, and water in areas lacking electricity. Marine environments utilize them for fuel transfer and bilge pumping, where safety and reliability are paramount.

They are also invaluable in emergency response situations, for quickly transferring liquids during spills or disaster relief efforts. Laboratory settings employ them for precise fluid handling, avoiding contamination risks.

Furthermore, they are used in remote field work, such as environmental sampling and geological surveys, where power access is limited. Their versatility extends to small-scale manufacturing and DIY projects, offering a convenient fluid transfer solution.

Operation is enhanced with proper care, making them a dependable choice.

Types of Manual Transfer Pumps

Manual transfer pumps encompass several designs, including rotary hand pumps, piston pumps, diaphragm pumps, and siphon pumps, each suited for specific fluid types.

These variations offer diverse capabilities, catering to different viscosity levels and transfer requirements, ensuring optimal performance and efficiency.

Rotary Hand Pumps

Rotary hand pumps utilize a rotating mechanism, typically vanes or gears, to create a positive displacement action, efficiently moving fluids with each rotation.

These pumps excel at handling viscous liquids like oils and fuels, offering a consistent flow rate even with challenging fluid characteristics.

The operation involves manually turning a handle, which drives the rotating element within the pump chamber, drawing fluid in and expelling it through the outlet.

They are known for their self-priming capabilities, simplifying the startup process and reducing the need for manual intervention.

Rotary pumps are commonly constructed from durable materials like metal or robust plastics, ensuring longevity and resistance to wear and tear.

Their relatively simple design contributes to ease of maintenance and repair, minimizing downtime and operational costs.

Applications include transferring diesel fuel, lubricating oils, and other non-corrosive fluids in automotive, agricultural, and industrial settings.

The flow rate is directly proportional to the speed of rotation, allowing for controlled fluid transfer based on operator input.

They are a reliable choice when a consistent, metered flow is required without the need for electrical power.

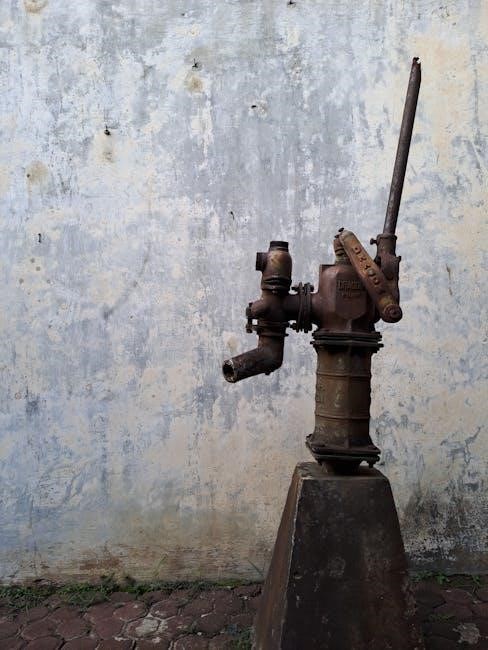

Piston Hand Pumps

Piston hand pumps operate on a reciprocating piston within a cylinder, creating a positive displacement action to draw and discharge fluids with each stroke.

These pumps are particularly effective for transferring high-viscosity fluids and can generate significant pressure, making them suitable for demanding applications.

Manual operation involves moving a handle, which drives the piston back and forth, creating suction to intake fluid and then forcing it out through the outlet.

They often feature a check valve system to ensure unidirectional flow, preventing backflow and maintaining consistent pumping performance.

Piston pumps are commonly used for transferring oils, hydraulic fluids, and other viscous substances in automotive repair and industrial maintenance.

Construction typically involves robust metal components to withstand high pressures and ensure durability over extended use.

While self-priming capabilities vary, many models require initial priming to establish suction and initiate fluid transfer.

The flow rate is determined by the piston’s displacement and the speed of the pumping action, offering controlled fluid delivery.

Regular maintenance, including lubrication and seal inspection, is crucial for optimal performance and longevity.

Diaphragm Hand Pumps

Diaphragm hand pumps utilize a flexible diaphragm, moved by manual operation, to create pumping action, offering a gentle yet effective fluid transfer method.

These pumps excel at handling shear-sensitive fluids and are well-suited for applications where contamination must be avoided, ensuring product integrity.

Operation involves a reciprocating motion that flexes the diaphragm, creating a changing volume within the pump chamber, drawing in and expelling fluid.

They are often constructed with materials compatible with a wide range of chemicals, making them versatile for diverse industrial applications.

Diaphragm pumps are frequently used in transferring acids, solvents, and other corrosive liquids, providing safe and reliable operation.

Check valves control the flow direction, ensuring unidirectional movement of the fluid throughout the pumping cycle.

Self-priming capabilities are common, simplifying startup and reducing the need for manual intervention.

Flow rates can be adjusted by varying the pumping speed, offering control over the transfer process.

Regular inspection of the diaphragm for wear and tear is essential for maintaining optimal performance and preventing leaks.

Siphon Pumps (Manual Operation)

Siphon pumps, in their manual operation form, rely on atmospheric pressure and gravity to initiate and sustain fluid transfer, offering a simple, power-free solution.

These pumps require the discharge end to be lower than the source, creating a pressure differential that drives the fluid flow, a fundamental principle.

Manual operation typically involves priming the hose to remove air, establishing a continuous liquid column for efficient siphoning action.

They are commonly used for transferring liquids from containers where electricity is unavailable or impractical, providing a convenient alternative.

Siphon pumps are particularly effective for low-viscosity fluids like water, fuels, and light oils, ensuring smooth and consistent transfer.

Care must be taken to avoid interrupting the siphon flow, as this can require re-priming the system, potentially causing delays.

Hose material compatibility is crucial to prevent degradation or contamination of the transferred fluid, ensuring product safety.

Flow rate is determined by the height difference and hose diameter, influencing the overall transfer time.

These pumps are ideal for applications like draining tanks or transferring liquids in emergency situations, offering reliability.

Working Principles of Manual Transfer Pumps

Manual transfer pumps function through human-powered mechanisms, creating either positive displacement or kinetic transfer to move fluids efficiently.

Vacuum and pressure play critical roles, drawing fluid in and expelling it, enabling reliable operation without electrical power sources.

Positive Displacement vs. Kinetic Transfer

Positive displacement pumps, common in manual transfer applications, operate by trapping a fixed volume of fluid and forcing it through the outlet. Each stroke delivers a consistent amount, regardless of discharge pressure, making them ideal for viscous liquids or precise metering. Rotary and piston pumps exemplify this principle, building pressure through mechanical action.

Conversely, kinetic transfer pumps, like some siphon designs, rely on imparting momentum to the fluid to move it. These pumps generate flow through velocity, rather than volume displacement. While simpler in design, they are generally less effective with viscous fluids and may require priming to initiate flow. The efficiency of kinetic pumps is heavily dependent on maintaining sufficient velocity.

The choice between these methods depends on the fluid properties and application requirements; positive displacement offers control and power, while kinetic transfer provides simplicity for lighter-duty tasks.

Role of Vacuum and Pressure

Manual transfer pumps fundamentally operate by manipulating vacuum and pressure to initiate and sustain fluid movement. The initial stroke often creates a partial vacuum within the pump chamber, drawing fluid from the source. This vacuum is essential for priming the pump and overcoming atmospheric pressure resisting the fluid’s entry.

Subsequent strokes then apply positive pressure to the fluid, forcing it through the discharge hose. The interplay between vacuum and pressure dictates the pump’s efficiency and ability to handle different fluid viscosities. Maintaining a proper seal is critical to maximizing both vacuum and pressure, preventing leaks that reduce performance.

Effective pump operation relies on this cyclical creation of differential pressure, enabling the transfer of liquids against gravity or through restrictive pathways.

Materials Used in Manual Transfer Pump Construction

Manual transfer pumps utilize diverse materials like plastics and metals for bodies, prioritizing durability and fluid compatibility.

Seal and gasket materials are crucial, requiring careful selection to ensure resistance to the transferred fluid and prevent leakage.

Compatibility is key for longevity.

Common Body Materials (Plastic, Metal)

Manual transfer pump bodies are commonly constructed from either plastics or metals, each offering distinct advantages depending on the application and the fluids being handled.

Plastics, such as polypropylene and polyethylene, are favored for their excellent chemical resistance, making them suitable for transferring corrosive liquids like acids and solvents.

They are also lightweight and generally more cost-effective than metal options, contributing to portability and affordability.

However, plastics may exhibit lower mechanical strength and temperature resistance compared to metals.

Metals, including stainless steel, aluminum, and cast iron, provide superior durability, strength, and temperature tolerance.

Stainless steel is particularly popular due to its corrosion resistance and compatibility with a wide range of fluids, ensuring longevity and reliability.

Aluminum offers a good balance of weight and strength, while cast iron is often used in heavier-duty applications requiring robust construction.

The choice between plastic and metal ultimately depends on the specific requirements of the pumping task, considering factors like fluid compatibility, temperature, pressure, and budget.

Seal and Gasket Materials (Compatibility)

Manual transfer pump performance heavily relies on the compatibility of seal and gasket materials with the transferred fluids, preventing leaks and ensuring operational integrity.

Common materials include nitrile (Buna-N), Viton (FKM), EPDM, and PTFE (Teflon), each exhibiting varying levels of chemical resistance and temperature tolerance.

Nitrile is a versatile and cost-effective option for many applications, offering good resistance to oils and fuels, but it’s less suitable for highly corrosive substances.

Viton provides superior resistance to harsh chemicals, high temperatures, and aggressive fluids, making it ideal for demanding environments.

EPDM excels in applications involving water, steam, and alkaline chemicals, while PTFE offers exceptional chemical inertness and temperature resistance, albeit at a higher cost.

Selecting the appropriate material requires careful consideration of the fluid’s chemical composition, concentration, temperature, and pressure.

Incompatibility can lead to swelling, degradation, or failure of the seals, resulting in leaks and pump malfunction, so proper material selection is crucial for long-term reliability.

Selecting the Right Manual Transfer Pump

Choosing a manual transfer pump demands careful evaluation of fluid properties, desired flow rates, and head requirements for optimal performance and efficiency.

Compatibility, viscosity, and particle size are critical factors influencing pump selection, ensuring reliable and trouble-free fluid transfer operations.

Fluid Compatibility Considerations

Selecting appropriate materials for a manual transfer pump is paramount, directly impacting its longevity and performance when handling various fluids.

Different liquids exhibit varying chemical properties, necessitating careful consideration of the pump’s body and seal materials to prevent degradation or failure.

For instance, aggressive chemicals like acids or solvents require pumps constructed from chemically resistant plastics like polypropylene or PTFE, ensuring material integrity.

Conversely, for water-based fluids, metal pumps with compatible seals may suffice, offering durability and cost-effectiveness.

Seal and gasket materials play a crucial role, demanding compatibility with the transferred fluid to maintain a leak-proof seal and prevent contamination.

Common materials include Viton, EPDM, and nitrile rubber, each possessing unique resistance profiles to different chemicals and temperatures.

Incompatibility can lead to swelling, cracking, or dissolution of seals, resulting in leaks and reduced pump efficiency, potentially causing operational hazards.

Therefore, thorough research and consultation with pump manufacturers are essential to ensure optimal fluid compatibility and reliable pump operation.

Prioritizing material compatibility safeguards against costly repairs, downtime, and potential safety risks associated with fluid leaks or pump failures.

Flow Rate and Head Requirements

Determining the necessary flow rate is crucial when selecting a manual transfer pump, directly influencing the time required to complete a fluid transfer task.

Flow rate, typically measured in gallons per minute (GPM) or liters per minute (LPM), should align with the application’s demands for efficiency and productivity.

Simultaneously, head requirements – the vertical distance the pump must lift the fluid – significantly impact pump selection and performance.

Higher head requirements necessitate pumps capable of generating greater pressure to overcome gravity and deliver fluid to the desired elevation.

Manual pumps offer varying head capabilities; selecting a pump with insufficient head will result in inadequate fluid delivery or complete failure.

Consider frictional losses within the hose and piping system, adding to the total dynamic head the pump must overcome for optimal operation.

Carefully assessing both flow rate and head requirements ensures the chosen pump can effectively and efficiently transfer the fluid under specific conditions.

Properly matched pumps minimize transfer time, reduce operator effort, and prevent premature pump wear, maximizing overall system performance.

Accurate calculations and informed decisions are vital for successful fluid transfer operations.

Viscosity and Particle Size

Fluid viscosity profoundly impacts the performance of manual transfer pumps; higher viscosity fluids require pumps capable of generating greater force to initiate and maintain flow.

Thick, viscous liquids like oils or syrups demand pumps designed to handle increased resistance, often utilizing positive displacement mechanisms for efficient transfer.

Conversely, low-viscosity fluids, such as water or solvents, can be transferred more easily, allowing for a wider range of pump options.

Particle size is another critical consideration, particularly when transferring fluids containing solids or debris.

Pumps handling fluids with particulate matter must incorporate features preventing clogging or damage to internal components.

Filters or strainers can be integrated to protect the pump, extending its lifespan and ensuring consistent performance.

Selecting a pump incompatible with the fluid’s viscosity or particle content can lead to reduced flow rates, increased wear, or complete pump failure.

Careful evaluation of these factors ensures optimal pump selection and reliable fluid transfer operations.

Matching the pump to the fluid characteristics is essential for maximizing efficiency and minimizing maintenance requirements.

Operation and Safety Guidelines

Proper pump operation demands careful priming to eliminate air pockets, ensuring efficient fluid transfer, and always prioritize safety protocols.

Adhering to safe procedures prevents spills and contamination, while regular inspection safeguards against potential hazards during manual pump usage.

Priming the Pump

Priming a manual transfer pump is a critical step to ensure efficient operation and prevent damage. Before initiating fluid transfer, it’s essential to remove any air trapped within the pump chamber and suction line, as air can significantly reduce pumping efficiency or even prevent it altogether.

Begin by verifying that all connections are secure and leak-proof. Slowly introduce fluid into the pump’s inlet port, often through a designated priming port or by partially disassembling the inlet connection. Operate the pump handle several times, observing for fluid expulsion and the disappearance of air bubbles.

Continue this process until a consistent stream of fluid emerges, indicating complete priming. For pumps with check valves, ensure they are functioning correctly to maintain prime. If priming proves difficult, check for obstructions in the suction line or a damaged pump diaphragm. A properly primed pump will deliver a smooth, consistent flow, maximizing its performance and extending its lifespan.

Safe Operating Procedures

Operating a manual transfer pump safely requires adherence to specific guidelines to protect both the operator and the surrounding environment. Always wear appropriate personal protective equipment (PPE), including gloves and eye protection, to prevent contact with the transferred fluid. Ensure the pump is placed on a stable, level surface to avoid tipping or spills.

Avoid exceeding the pump’s maximum pressure or flow rate, as this can lead to component failure or hazardous situations. Never operate the pump with flammable liquids near open flames or ignition sources. Regularly inspect the pump for signs of wear or damage, such as leaks or cracks, and address any issues promptly.

Properly vent any pressure buildup within the system before disconnecting hoses or performing maintenance. Be mindful of the fluid being transferred and follow all relevant safety data sheet (SDS) recommendations. Following these procedures ensures a safe and efficient pumping operation.

Preventing Contamination

Maintaining fluid purity is crucial when using manual transfer pumps. Before each use, thoroughly clean the pump and all associated hoses and fittings with a compatible solvent. Inspect for any debris or residue that could contaminate the fluid being transferred. Utilize strainers or filters at the pump inlet to capture particulate matter and prevent it from entering the system.

Store the pump in a clean, dry environment when not in use, protecting it from dust, dirt, and other potential contaminants. When disconnecting hoses, cap or plug them immediately to prevent ingress of foreign materials. Avoid introducing air into the system during priming or operation, as this can lead to oxidation or other undesirable reactions.

Regularly flush the pump with a cleaning solution to remove any accumulated buildup. Proper preventative measures safeguard fluid integrity.

Maintenance and Troubleshooting

Regular inspection and cleaning are vital for optimal pump performance; address common issues promptly, like reduced flow or leaks, to ensure longevity.

Consistent upkeep prevents costly repairs and maintains efficient fluid transfer, maximizing the pump’s operational lifespan and reliability.

Regular Inspection and Cleaning

Consistent visual checks are paramount for identifying potential issues before they escalate into significant problems. Examine the pump body for cracks, wear, or any signs of physical damage that could compromise its integrity. Pay close attention to all connections – hoses, fittings, and seals – ensuring they remain tight and free from leaks.

Thorough cleaning after each use is crucial, especially when handling viscous or particulate-laden fluids. Residue buildup can impede performance and accelerate wear. Flush the pump with a compatible solvent, following manufacturer’s guidelines, to remove any remaining fluid. Inspect internal components, if accessible, for debris or corrosion.

Lubricate moving parts as recommended by the manufacturer to reduce friction and maintain smooth operation. Regularly check seals and gaskets for deterioration, replacing them promptly if necessary to prevent leaks and maintain pressure. A proactive maintenance schedule extends the pump’s lifespan and ensures reliable performance.

Common Issues and Solutions

Reduced flow rate often indicates a blockage within the pump or hoses. Disconnect and inspect hoses for obstructions, and flush the pump thoroughly with a compatible solvent. Difficulty priming can stem from air leaks in connections; tighten all fittings and check for damaged seals. Ensure the suction hose is fully submerged and free of kinks.

Leakage typically points to worn or damaged seals and gaskets. Replace these components promptly, ensuring compatibility with the fluid being transferred. Stiff operation suggests a lack of lubrication; apply recommended lubricant to moving parts. If the pump remains stiff, internal components may require inspection or replacement.

Inconsistent pumping could indicate air entering the system or a partially blocked suction line. Address air leaks and clear any obstructions. Regular maintenance and prompt attention to these issues will maximize pump lifespan and efficiency.

Advantages and Disadvantages of Manual Transfer Pumps

Advantages of manual transfer pumps include their portability and independence from electrical power sources, making them ideal for remote locations or emergency situations. They are generally cost-effective, requiring minimal initial investment and maintenance. Their simple design contributes to reliability and ease of use, even for untrained personnel. They also offer inherent safety, eliminating the risk of electrical hazards.

Disadvantages center around the physical effort required for operation, limiting their suitability for large-volume or continuous transfers. Flow rates are typically lower compared to powered pumps, and operator fatigue can become a factor during prolonged use. They may not be suitable for highly viscous fluids or applications demanding precise flow control. Proper care and judgement are essential for optimal operation.
